IPA Bottom Support Fitting
IPA
SKU
| Cill Detail | -- |
| Size A | -- |
| Size B | -- |
| Size C | -- |

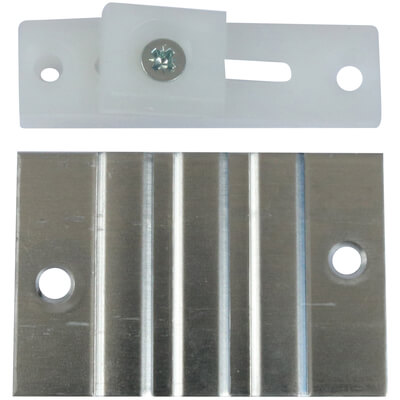

- Bottom support fitting for IPA flush casement side hung and side swing window system
- IPA 21226 to be used with IPA 21195 Side Swing Friction Stay
- IPA 21225 to be used with IPA 21193 Side Swing Friction Stay
- The plastic wedge is mounted in the IPA system groove on the sash and the aluminium rail is mounted on the bottom frame
- Can be adjusted by loosening the screw in the small plastic block
